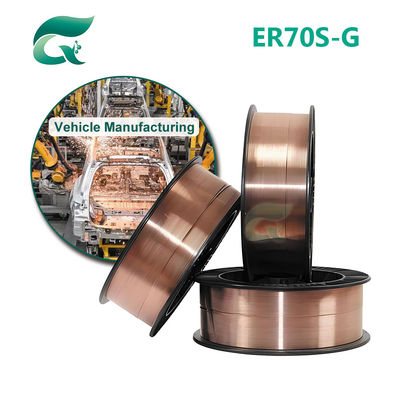

ER70S-G Copper Coated MIG Welding Wire for Steel Alloy
| MOQ: | 1080 kilograms |
| Price: | CN¥6.44/kilograms 1080-10799 kilograms |
| Standard Packaging: | 5KG/15KG/20KG Spool, 250KG Drum |
Detail Information
Place of Origin
Shandong, China
Brand Name
CHENXIANG
Model Number
ER70S-G
Warranty:
3 Years
Customized Support:
OEM, ODM, OBM
Material:
Steel Alloy
Diameter:
0.8mm/1.0mm/1.2mm/1.6mm/2.0mm
Melting Point:
As Standard
Weight:
5KG/15KG/20KG/250KG
Application:
All Position Welding
Flux Content:
Standard Content
Standard:
AWS A5.18
Color:
Copper Bright
Sample:
For Free
Shield Gas:
100% Co2/80%Ar+20%Co2
Feature:
Excellent Welding Performance
OEM:
Available
Spool Materials:
Metal Spool/Plastic Spool
Highlight:
ER70S-G solid mig welding wire
,Copper Coated solid mig welding wire
,Customizable mig solid welding wire
Product Description
Customizable Copper Coated ER70S-G Solid MIG Welding Wires for Steel CO2 Alloy Carbon Steel Materials
Product Attributes
| Attribute | Value |
|---|---|
| Warranty | 3 years |
| Customized Support | OEM, ODM, OBM |
| Material | Steel Alloy |
| Diameter | 0.8mm/1.0mm/1.2mm/1.6mm/2.0mm |
| Melting Point | As Standard |
| Weight | 5KG/15KG/20KG/250KG |
| Application | All Position Welding |
| Flux Content | Standard Content |
| Standard | AWS A5.18 |
| Color | Copper Bright |
| Sample | For Free |
| Shield Gas | 100% Co2/80%Ar+20%Co2 |
| Feature | Excellent Welding Performance |
| OEM | Available |
| Spool Materials | Metal Spool/Plastic Spool |
Product Description
ER70S-G is a general-purpose gas shielded welding wire, widely used in the welding of low carbon steel and low alloy steel.
Chemical Composition
- Carbon (C): ≤0.07%
- Manganese (Mn): 1.00-1.50%
- Silicon (Si): 0.40-0.80%
- Sulfur (S): ≤0.025%
- Phosphorus (P): ≤0.025%
- Other elements: may contain a small amount of nickel (Ni), chromium (Cr), molybdenum (Mo), etc. to improve welding performance
Mechanical Properties
- Tensile strength: ≥500 MPa
- Yield strength: ≥420 MPa
- Elongation: ≥22%
- Impact toughness: excellent, suitable for dynamic load environment
Details
| Standard/Grade | Diameter | Weight |
|---|---|---|
| AWS A5.18 ER70S-G | 0.8mm/1.0mm/1.2mm/1.6mm/2.0mm | 5KG/15KG/20KG/250KG |
Basic Chemical Compositions
| C | Mn | Si | P | S | Ni | Cr | Cu | Mo | Ti |
|---|---|---|---|---|---|---|---|---|---|
| 0.58 | 1.44 |
