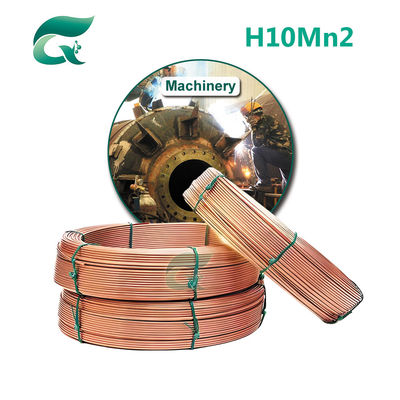

AWS A 5.17 EH14 Submerged Arc Welding Wire / 25KG-300KG Subarc Wire
| MOQ: | 1000 kilograms |
| Standard Packaging: | 25kg~300kg fine round package; 200kg and 250kg large iron or wood plate package; 25kg/pallet basket package. |
Detail Information
Place of Origin
Shandong, China
Brand Name
CHENXIANG
Model Number
WES EH14
Warranty:
3 Years
Customized Support:
ODM, OBM, OEM
Material:
Low Carbon Steel
Diameter:
2.5mm/3.2mm/4.0mm/5.0mm
Melting Point:
As Standard
Weight:
25KG-1000KG
Sample:
For Free
Delivery:
5-10 Days
C:
0.07
Mn:
1.61
Si:
0.03
P:
0.12
S:
0.011
Ni:
0.008
Cr:
0.012
Highlight:
eh14 submerged arc welding wire
,300kg subarc wire
,eh14 subarc wire
Product Description
AWS A 5.17 EH14 Submerged Arc Welding Wire / 25KG-300KG Subarc Wire
Product Specifications
| Warranty | 3 years |
| Customized Support | ODM, OBM, OEM |
| Material | Low Carbon Steel |
| Diameter | 2.5mm/3.2mm/4.0mm/5.0mm |
| Melting Point | As Standard |
| Weight | 25KG-1000KG |
| Sample | For Free |
| Delivery | 5-10 days |
Product Description
Chemical Composition
- Carbon (C): 0.08%-0.13% ensures weld metal strength
- Manganese (Mn): 1.50%-1.90% for deoxidation and improved strength/toughness
- Silicon (Si): ≤0.07% to balance strength and toughness
- Sulfur (S): ≤0.035% (controlled as harmful element)
- Phosphorus (P): ≤0.035% to prevent reduced toughness
Performance Characteristics
- Mechanical properties: Tensile strength 420-560MPa, yield strength ~330MPa, elongation ≥22%
- Welding process: Stable arc combustion, beautiful weld formation, easy slag removal
- Minimal spatter during welding ensures quality and efficiency
| Standard/Grade | GB/T 5293-H10Mn2 | AWS EH14 |
|---|---|---|
| Diameter | 2.5mm/3.2mm/4.0mm/5.0mm | |
| Weight | 25/50/100/200/250/500/1000KG | |
Chemical Composition Example
| Element | C | Mn | Si | P | S | Ni | Cr | Cu |
|---|---|---|---|---|---|---|---|---|
| Guarantee Value | 0.07 | 1.61 | 0.03 | 0.12 | 0.011 | 0.008 | 0.012 | - |
