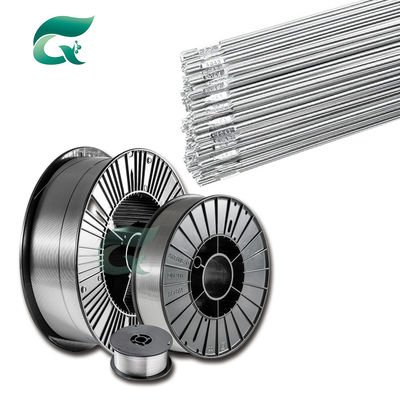

TIG/MIG ER309 ER309L Stainless Steel Welding Wire AWS A5.9 acid resistance

Products

Stainless Steel Flux Cored Wire

TIG/MIG ER309 ER309L Stainless Steel Welding Wire AWS A5.9 acid resistance

MOQ:	1000 kilograms

Detail Information

Product Description

Detail Information

Place of Origin

Shandong, China

Brand Name

CHENXIANG

Model Number

AWS A5.9 ER309/ER309L

Warranty:

3 Years

Customized Support:

OEM, ODM, OBM

Material:

Stainless Steel

Diameter:

0.8mm/1.0mm/1.2mm/1.6mm/2.0mm

Melting Point:

As Standard

Weight:

As Standard

Application:

All Position Welding

Flux Content:

Normal

Sample:

Available

Standard:

AWS A5.9

Delivery:

5-10 Days

0.07/0.015

0.46/0.30

2.05/1.85

0.010/0.011

0.008/0.007

24.00/24.00

Highlight:

ER309 stainless steel tig welding wire

ER309 stainless steel mig welding wire

er309 309l ss mig wire

Product Description

TIG/MIG ER309 ER309L Stainless Steel Welding Wire AWS A5.9 acid resistance

Product Description

ER309 and ER309L are austenitic stainless steel welding wires designed for welding of stainless steel and carbon steel dissimilar materials, especially suitable for scenarios with high chromium and high corrosion resistance requirements.

Core difference:
ER309L has a lower carbon content (ultra-low carbon design), significantly reducing the risk of intergranular corrosion.

Both contain high chromium (23%+), giving the weld strong oxidation and acid resistance.

Details Images

Standard/Grade	GB/T 29713 S309 AWS A5.9 ER309
Standard/Grade	GB/T 29713 S309L AWS A5.9 ER309L
Diameter	0.8mm/1.0mm/1.2mm/1.6mm/2.0mm

TIG/MIG ER309 ER309L Stainless Steel Welding Wire AWS A5.9 acid resistance 1

Specifications

Chemical Composition of ER309
C	Si	Mn	P	S	Cr	Ni	Mo	Cu
0.07	0.46
